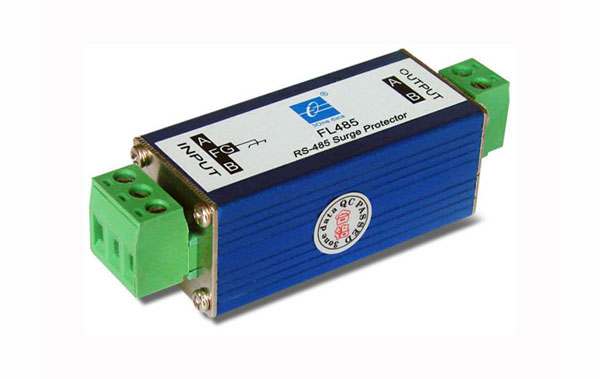

FL485

Standard: EIA RS-485、IEC 61000-4-5、ITU-TK20&K21

Serial port quantity: 1 RS-485 serial port input and output

RS-485 signal: A, B

Interface form: 3-pin industrial terminal blocks

Impact and over-current withstanding: ≤5kA (8/20µs simulated lightning waveform)

Operating voltage: 0~5V

Limited voltage: ≤15V

Applicable rate: 1Mbps

Insertion loss: ≤0.5dB

Response time: ≤1ns

Environmental

Limit

Operating temperature: -20~60℃

Storage temperature: -25~85℃

Relative humidity: 5%～95% (no condensation)

Physical

Characteristic

Housing: metal

Dimension (W x H x D): 74mm×25mm×25mm

Weight: 50g

Certification

CE, FCC, RoHS
