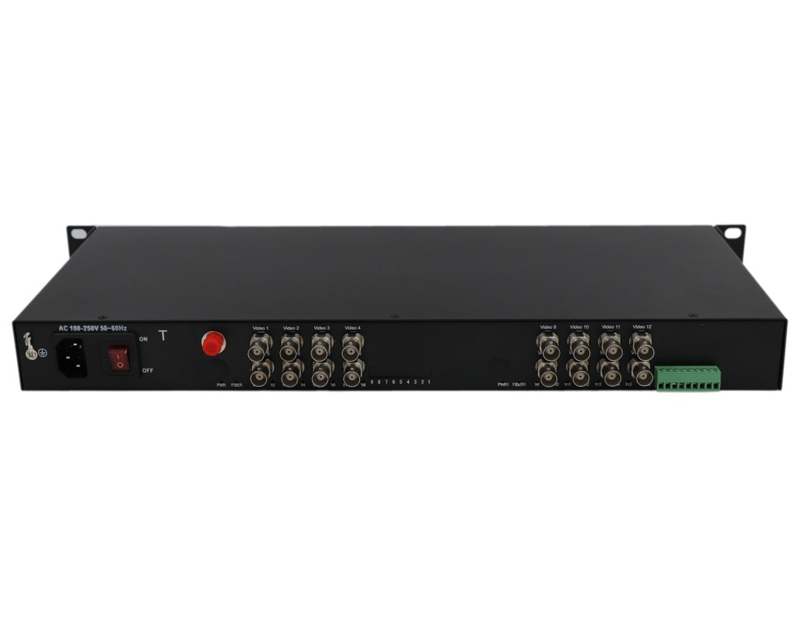

3onedata Video to Fiber Converter - 720 OR 1080P SWV62600

SWV62600 Series

Lossless non-compression real time transmission

CWDM technology offer 3.2G bandwidth to each 4chs video, support higher performance

Automatically identify formats of input video: AHD/TVI/CVI/PAL/NTSC/SECAM

Support 720P/25/30/50Hz, 960P/25/30Hz, 1080P/30Hz

Advanced lightning protection design, support 5.7KV lightning protection

Jumlah

Rp. 46,924,000

Preorder

2 Days Preorder

Bagikan Produk Ini

16V↑,16 channel video,FC(SC/ST optional), 20KM ,AC100-240V to 5VDC

Optics	Wavelength: CWDM: 1310nm/1550nm/1470nm/1490nm/1570nm Output Power: -8~-3dBm Optic fiber: 50/125u multimode, 62.5/125u multimode, 9/125u single mode Rx sensitivity: -23dBm Optical connector: FC, ST, SC (optional) Distance: 0~550M (MM)/0~80KM (SM) (Default distance is 20Km)
Video	Number of Channels: 16 Input/output impedance: 75 Ohm (unbalance) Standard video input/output voltage: 1.0Vp-p Video Bandwidth: 50MHz Sampling Bandwidth: 8bit Sampling Frequency: 100MHz Signal to noise ratio: >67dB Rise and Fall time: <0.8ns Optical Signal Intrinsic Jitter: <0.2 UI Differential Gain: < ±1.5% Differential Phase: < ±1° Connector: BNC Supporting video pixel: 1280(H)x720(V)@30Hz/1MPX 1280(H)x720(V)@50Hz/1MPX 1280(H)x960(V)@30Hz/1.3MPX 1920(H)x1080(V)@30Hz/2MPX
Data	Protocol: Default: RS485 (RS232/RS422 Optional) Number of channels: 1 Connector: 9pins Terminal Blocks Data Rate: 0-200Kbps Directions: Default: Simplex from Rx to Tx (BIDI duplex optional)
Mechanical Structure & Environment	Power: DC5V 3A Power Consumption: ≤10W Working Temperature: -15℃~65℃ Storage Temperature: -40℃~85℃ Relative Humidity: 5%~95% ( no condensation) MTBF: ≥ 100000Hours
